Description

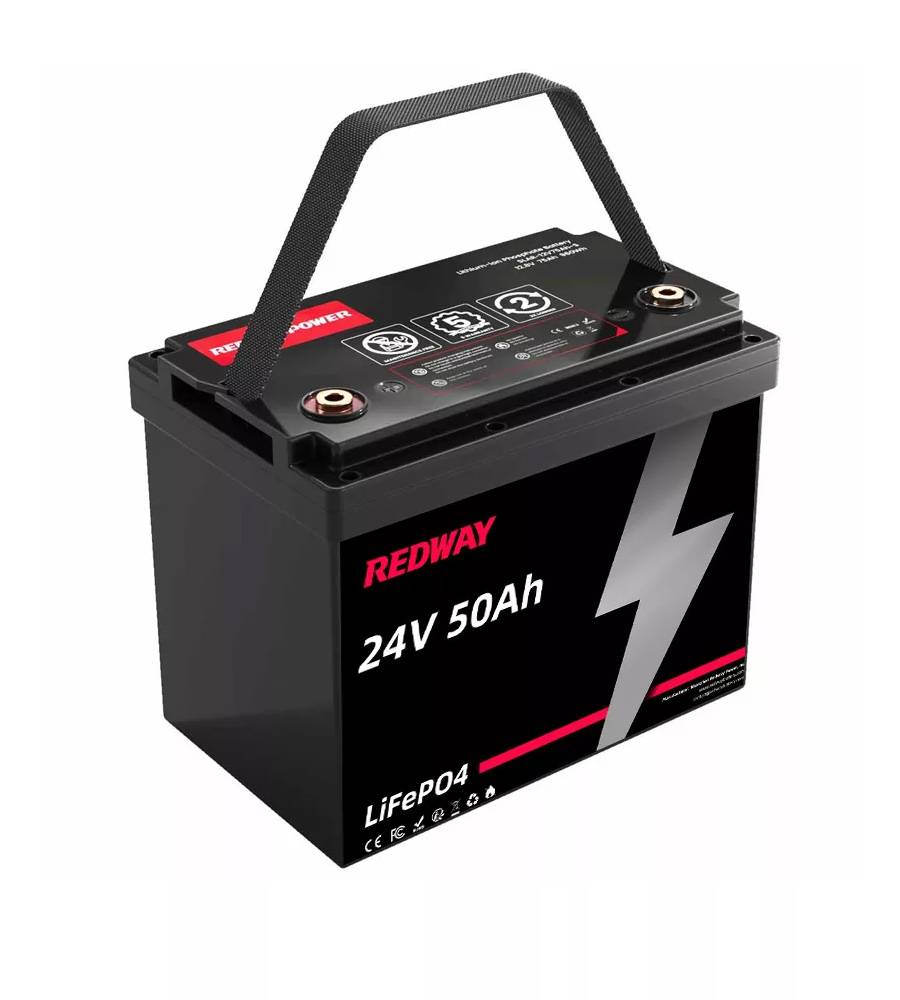

Introducing the 24V 50Ah LiFePO4 Lithium Battery, a high-performance energy storage solution expertly manufactured by a leading OEM in China. This battery is specifically designed for OEM, ODM, and wholesale buyers, making it ideal for a variety of applications such as recreational vehicles, marine systems, and solar energy storage. With its advanced technology and robust performance, this battery provides reliable energy delivery in demanding environments.
Key Features
- High Energy Capacity: This battery delivers a nominal voltage of 25.6V and a capacity of 50Ah, providing a total energy output of 1280Wh. This substantial energy supply makes it suitable for various applications requiring dependable power.
- Long Cycle Life: Engineered for durability, the battery is built to exceed 4000 cycles at 80% Depth of Discharge (DoD), significantly reducing replacement costs and enhancing reliability over time.
- Compact Design: With dimensions of approximately 260 x 168 x 210 mm (10.24 x 6.6 x 8.27 inches) and a weight of only 10 kg (22 lbs), this battery is designed for easy installation in tight spaces without compromising on performance.
- IP65 Rating: The battery offers excellent protection against dust and water ingress, making it suitable for outdoor and marine environments where exposure to the elements is common.
- Customizable Options: Available for OEM/ODM projects, this battery can be tailored to meet specific requirements with features such as Bluetooth connectivity, LCD displays, and advanced safety technology.
Product Description
The 24V 50Ah LiFePO4 Lithium Battery is engineered to meet the energy demands of various applications, including RVs, boats, and off-grid solar systems. It supports a maximum continuous charge and discharge current of up to 50A, ensuring efficient power management tailored to your specific needs.Constructed from durable materials, this battery withstands harsh conditions while maintaining optimal performance. It operates effectively within a temperature range of 0°C to 60°C for charging and −20°C to 60°C for discharging.Equipped with an advanced Battery Management System (BMS), this battery protects against overcharging, over-discharging, short circuits, and other potential hazards. With a self-discharge rate of approximately 2% per month, it retains its charge during periods of inactivity.Designed for longevity, the battery has a lifespan of up to 10 years, supported by a warranty period of 3 years, making it an excellent choice for OEMs, wholesalers, and businesses seeking high-performance energy solutions.Contact us today to explore customization options and bulk purchasing benefits! Our team is ready to assist you in meeting your specific energy storage needs with our innovative battery technology!
A 24V 50Ah LiFePO4 battery offers long life and high safety through advanced lithium iron phosphate chemistry and integrated intelligent Battery Management System (BMS). Delivering approximately 1.28kWh of energy, it supports over 2,000 deep cycles, fast charging, and robust protection features, making it ideal for solar, marine, RV, and industrial applications.
What is a 24V 50Ah LiFePO4 Battery and How Does It Work?
A 24V 50Ah LiFePO4 battery is a rechargeable lithium iron phosphate battery with a nominal voltage of 25.6V and capacity of 50 amp-hours. It stores energy by shuttling lithium ions between electrodes during charge and discharge, providing stable voltage and high current output suitable for deep cycle use.
How Does LiFePO4 Chemistry Ensure Long Life and High Safety?
LiFePO4 chemistry offers excellent thermal stability and chemical safety, reducing risks of overheating and fire. Its robust structure supports thousands of deep charge cycles with minimal capacity loss, ensuring consistent power and a long lifespan.
What Are the Key Specifications of a 24V 50Ah LiFePO4 Battery?
-
Nominal Voltage: 25.6V
-
Capacity: 50Ah
-
Energy: Approximately 1.28 kWh
-
Max Continuous Discharge Current: 50-60A
-
Peak Discharge Current: 100-120A (short bursts)
-
Cycle Life: Over 2,000 cycles at 100% DoD; up to 5,000 cycles at 80% DoD
-
Weight: Approximately 13.5-14 kg
-
Dimensions: Approx. 328 x 171 x 215 mm
-
Charge Voltage: 29.2V
-
Discharge Cut-off Voltage: 20V
-
Operating Temperature: Charge 0°C to 45°C; Discharge -20°C to 60°C
-
Protection Rating: IP65
-
Integrated BMS with protections for overcharge, over-discharge, overcurrent, short circuit, temperature, and cell balancing
How Does the Battery Management System (BMS) Protect and Optimize the Battery?
The BMS continuously monitors voltage, current, temperature, and state of charge to prevent unsafe conditions such as overcharging, deep discharge, overheating, and short circuits. It balances cells to maximize capacity and cycle life, ensuring safe and efficient operation.
What Are the Advantages of Using a 24V 50Ah LiFePO4 Battery Over Lead-Acid Batteries?
-
Up to 10 times longer cycle life
-
Higher usable capacity (up to 95% DoD)
-
Lighter weight (approximately 50-60% lighter)
-
Faster charging times
-
Minimal maintenance requirements
-
Enhanced safety and environmental friendliness
How Should You Charge and Maintain a 24V 50Ah LiFePO4 Battery?
Charging should follow a constant current/constant voltage (CC/CV) profile with a maximum charge voltage near 29.2V. Maintenance is minimal, including periodic inspection of terminals and connections, and operating within recommended temperature ranges.
How Does Temperature Affect the Performance and Lifespan of a 24V 50Ah LiFePO4 Battery?
Performance declines at temperature extremes. Low temperatures increase internal resistance and reduce capacity, while high temperatures accelerate chemical degradation. Optimal performance and longevity occur between 0°C and 45°C.
What Applications Are Best Suited for a 24V 50Ah LiFePO4 Battery?
Ideal applications include:
-
Solar energy storage and off-grid power systems
-
Recreational vehicles (RVs) and marine power
-
Industrial backup power and UPS
-
Electric scooters, e-bikes, and golf carts
-
Telecommunications and remote monitoring
What Customization Options Are Available for 24V 50Ah LiFePO4 Batteries?
OEM-Lithium-Batteries offers customization including voltage and capacity configurations, communication protocols (CAN, RS485, Bluetooth), self-heating modules, GPS tracking, LCD displays, and tailored enclosure designs.
Chart: 24V 50Ah LiFePO4 vs Lead-Acid Battery Comparison
Feature | LiFePO4 Battery | Lead-Acid Battery |
---|---|---|
Cycle Life | >2,000 cycles | 300-500 cycles |
Weight | 13.5-14 kg | 30-40 kg |
Charging Time | Faster (3-5 hours) | Slower (6-8 hours) |
Maintenance | Minimal | Regular watering needed |
Safety | High (thermal stable) | Moderate |
Chart: Key Specifications of 24V 50Ah LiFePO4 Battery
Specification | Value |
---|---|
Nominal Voltage | 25.6V |
Capacity | 50Ah |
Energy | 1.28 kWh |
Max Discharge Current | 50-60A |
Peak Discharge Current | 100-120A |
Weight | 13.5-14 kg |
Dimensions (mm) | 328 x 171 x 215 |
Cycle Life | >2,000 cycles |
